IV Fluid Medical Alaris Infusion Pump UNB08 In Ambulatory Hospital

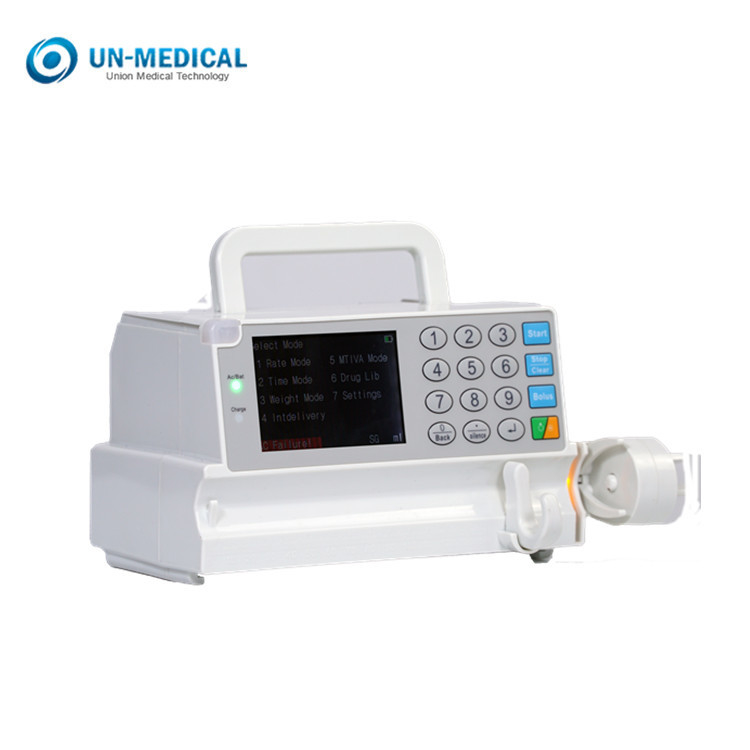

Name: IV Fluid Medical Alaris Infusion Pump UNB08 In Ambulatory Hospital
Brand: Union Medical
SKU: UNB08
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (146 reviews)

Product Details:

Place of Origin:	Wuhan, China
Brand Name:	Union Medical
Certification:	CE ISO
Model Number:	UNB08

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	1 unit: 363425cm 3.5kg ; 4 units: 684050cm 16kg
Delivery Time:	3-5 days
Payment Terms:	T/T, Paypal
Supply Ability:	1000 units per month

Contact Now

Detailed Product Description

Product Name:	Portable IV Injection Sryinge Infusion Pump	Application::	Medical, Veterinary, Tpn, PCA, Insulin, Infant Care, Operating Room
Display:	3.5 Inch Color LCD TFT	Type:	Medical Equipment
Group:	Human/Veterinary	Advantage:	Stackable; Portable; Drug Library; Double CPU
OEM/ODM:	Support	Power Supply:	Rechargeable Lithium Ion Battery
Interface:	USB/RS232/SD	Language:	English, Spanish, Portuguese, Italian
High Light:	IV Fluid Medical Infusion Pump , Medical Alaris Infusion Pump , Ambulatory Alaris Infusion Pump

UNB08 Alaris Injection Pump IV Fluid Medical Infusion Pump in Ambulatory and Hospital for Human and Veterinary

Advantages:

● Colorful TFT screen with keyboard button
● Automatic self-identification of 5ml, 10ml, 20ml, 30ml and 50ml syringes
● All kinds of syringe brands
● 4 injection modes: ml/h Mode, Weight Mode, Volume-Time Mode, Standby mode
● 25 injection speed units
● KVO & Bolus function
● Visible and audible Alarms
● Real time display
● Rechargeable Lithium battery can work continuously for over 4.5 hours
● Stackable combination with single AC power supply
● Double CPU
● Autosave 2000 syringe records

IV Fluid Medical Alaris Infusion Pump UNB08 In Ambulatory Hospital 0

Description:

The product features friendly human machine interface and convenient operation settings. 3.5 inch color LCD, detailed mean display. It is also provided 6 multiple internally reliability design and abundant alarm prompt functions to realize more stable operation and more safe infusion.
With arc shape, it is beautiful and can’t cut the hand and is easy to scrub.

IV Fluid Medical Alaris Infusion Pump UNB08 In Ambulatory Hospital 1

Specifications:

Applicable Syringe	5ml, 10ml, 20ml, 30ml, 50ml	Injection Volume	0.0001~999999ml
Syringe Brand	Any syringe brand	Injection Pressure	Three levels for selection: (L) 300mm/Hg (M)500mm/Hg (H) 1100mm/Hg
Range of Injectionrate	0.1~100ml/h, 5ml Syringe	Injection Mode	3 modes: ml/h mode, Weight mode, Volume-Time mode, Standby mode
	0.1~300ml/h, 10ml Syringe	Alarm	AC power failure, Syringe falls off, Reinstall syringe, Countdown, Air, Occlusion, Low battery, Error, Over, no enough drugs, beyond Parameters range
	0.1~600ml/h, 20ml Syringe	Operating Condition	Environment Temperature: 5ºC~40ºC
	0.1~800ml/h, 30ml Syringe		Relative Humidity: 20%~90%
	0.1~1200ml/h, 50ml Syringe		Atmospheric Pressure: 700 hPa~1060hPa
Bolus rate	50~100ml/h (Default 50ml/h), 5ml Syringe	Power	AC 100V~240V, 50Hz/60Hz; DC 14.8V(+5%,-10%) 2000mAh rechargeable
	50~300ml/h (Default 150ml/h), 10ml Syringe	Input Power	25VA
	50~600ml/h (Default 300ml/h), 20ml Syringe	Battery	Rechargeable battery; Charging time: 12~16h; Discharge time: over 4.5h ( fully charged)
	50~800ml/h (Default 300ml/h), 30ml Syringe	Fuse specification	AC 250V 3.15A
	50~1200ml/h (Default 400ml/h), 50ml Syringe	Safety Level	Class I, Type BF()
KVO rate	0.1~1.0ml/h, adjustable at increment level of 0.01ml/h	IP Grade	IPX4
Accuracy:	±2%	Dimension	325mm x 251mm x 157mm
Speed unit (Dose-rate unit)	25 kinds of injection-speed units as follows:	Weight	G.W: 3.5kgs, N.W: 2.6kgs
Speed unit (Dose-rate unit)	ml/h, mg/min, mg/h, mg/24h, mg/kg/min, mg/kg/h, mg/kg/24h, ug/min, ug/h, Ug/24h, g/kg/min, ug/kg/h, ug/kg/24h, U/min, U/h, U/24h, U/kg/min, U/kg/h, U/kg/24h, kU/min, kU/h, kU/24h, kU/kg/min, kU/kg/h, kU/kg/24h

Union Medical Product Line:

Factory:

Company Profile:

We, Wuhan Union Medical Technology CO., Ltd, is a R&D company in patient monitoring solutions, which started in 2009 with leading engineers in China, and established in 2013. Union Medical is committed to the techniques and products of monitoring, diagnosing ,supporting and treating the biological information; serving the society; improving human health.

Union Medical focused on the development of patient monitoring solutions with engineers who have experience in this area for more than 15 years. Our main solutions are about the non-invasive and invasive solutions for patients vital sign parameters, technologies as: algorithm for ECG diagnosis, pulse oxygen monitoring, respiration gas monitor, respiratory monitoring, electronic sphygmomanometer etc. Vital sign parameter modules: ECG module, SPO2 Module, NIBP Module, IBP Module, Six-parameter Module, Multigas Module etc.

We also produce our own final monitoring equipments, like ECG machines, patient monitors, vital sign monitors, pulse oximeters, ETCO2 monitors/Capnometer/Capnograph, Anesthesia Multigas monitors etc.
