We are devoted to improve the medical equipment industry of human health.
Place of Origin: | Wuhan, China |
Brand Name: | Union Medical |
Model Number: | UN100C |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiable |
Packaging Details: | 1 unit: 52*52*27cm/ctn 11kg |
Delivery Time: | 3-5 days |
Payment Terms: | T/T, Paypal |
Supply Ability: | 500 units per month |
Product Name: | Portable Ventilator | Application: | Hospital (ICU/RICU) |
---|---|---|---|
Screen: | LCD Screen | Gas Source: | 0.28-0.6Mpa 60L/min |
Classification: | Class I, Type B; IPX4 | Patient: | Weighs More Than 15kgs |
Modes: | CMV, A/C, SIMV, SPONT | Tidal Volume: | 50-1200ml |
FiO2: | 40%-100% | Power: | AC, DC And Internal Battery |
High Light: | ICU Ventilator Machine 60L/Min,First Aid Transport ICU Ventilator Machine,60L/Min portable ventilator machine |

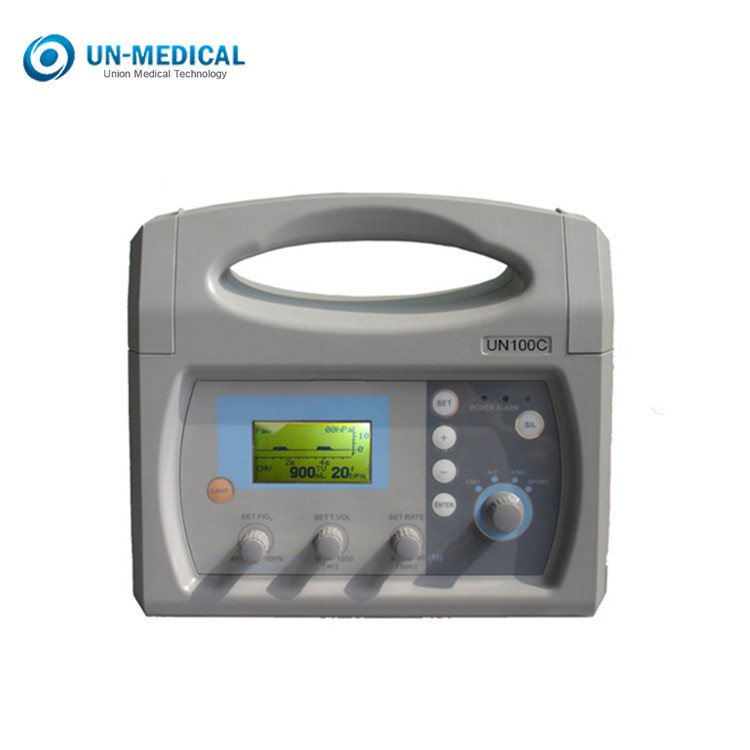

Pediatric Adult Patients Emergency First-Aid Transport ICU Ventilator Machine
Description:
This ventilator is the pneumatically driven electrically controlled ventilation system with compact structure and more functions. The ventilator conforms to the principle of simple and easy operation requested for emergency equipment. It can be used by emergency, first-aid center and transport. It also can be used for respiratory care and treatment for the patient.
Specifications:
Modes | CMV, A/C, SIMV, SPONT |
---|---|
Tidal Volume | 50~1200ml |
Respiratory Rate | 5~60bpm,1-12 bpm for SIMV |
Respiratory Rate | 40%~100% |
Trigger | -10~0hPa |
Max Minute Volume | ≥22L/min |
PEEP | 0, 5 ~20hPa |
PIP | 0~60hPa |
Over Pressure Relief | ≤ 72hPa |
Sigh | 0~10 per 100 breath |
Base Flow | 0~5 L/min |
Monitored Parameters: |
Tidal Volume Sigh Respiratory Rate Peak Airway Pressure Trigger Airway Pressure Airway Pressure Wave Form |
Alarms: | High Airway Pressure Alarm Low Airway Pressure Alarm High respiratory rate alarm Low Battery Alarm |
Environmental Requirements
Relative humidity | 15%~95% |
---|---|
Ambient temperature | -18~ 50°C |
Atmospheric pressure | 70~110kPa |
Gas source | 0.28~0.6Mpa 60L/min |
Power | AC100V-240V or DC12V; Li-battery: 2200mAH, rechargeable |
Classification
ClassⅠ, Type B — by protection against electric shock.
IPX4 — by protection against harmful ingress of water, particulate matter.
It is suitable for the patient who weighs more than 15KG.
Configuration of UN100C Ventilator:
Standard configuration:
Ventilator, pressure-pressure-reducing valve, high-pressure oxygen tube, lung simulator, breathing circuit, mask, head band, power adapter.
