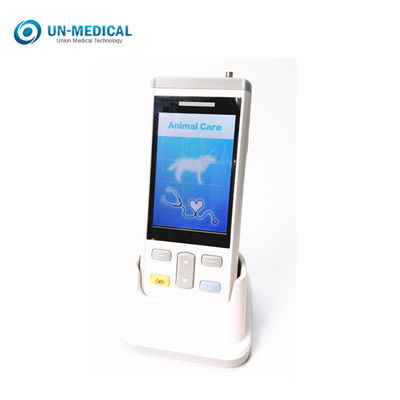

CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor

CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor

CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor
Product Details:
Place of Origin: Wuhan, China
Brand Name: Union Medical
Certification: CE ISO
Model Number: PC100V
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: 1 unit: 21*14*10cm/ctn; 4 units: 31*26*21cm/ctn; 25 units: 59.5 * 36.5*46.5cm/ctn
Delivery Time: 3-5 days
Payment Terms: T/T, Paypal
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Product Name: Portable Veterinary Vital Sign Monitors Display: 3.5 Inch Color TFT
Parameter: SPO2, NIBP, TEMP, PR PI: 0.025%-20%
Application: Small And Big Animals/pets Measurement Mode: Spot; Monitoring
Certificate: CE ISO Language: English, Spanish, French, Russian, Arabic And Chinese (Custom)
Voltage: 110V-240V Power Supply: Lithium Ion Battery
Data Transfer: USB
High Light:

320X480 Veterinary Medical Equipment

,

CE ISO Veterinary Multiparameter Monitor

,

320X480 Veterinary Multiparameter Monitor

Portable Handheld Spo2 NIBP Temp PC100V Vital Sign Monitor Veterinary Medical Equipment



Advantages:

  • Smallest and exquisite handheld vital sign monitor
  • Accurate measurement in 0.025% Low perfusion Index,the world leading production in the movement environment
  • Provide the parameter of PI( Perfusion Index 0.05%-20%)
  • Suitable all kinds of animals and human
  • Easy operation by 3.5 inch color TFT
  • Up to 100 users ID switch
  • Two measurements mode:Spot, Monitoring
  • Data storage function: support data review, date trend and chart
  • In monitoring mode, can continuously record 48 hours of measurement data
  • In spot mode, 100 users ID, each user can store 200sets data
  • Support audio and visual alarm, support to set alarm upper and lower limit values
  • Lithium ion battery power supply
  • Optional Charging dock



Description:

Smallest Handheld Vital Sign Monitor in the world. The PC100V is mainly used to measure Blood Pressure, Spo2, Temperature and pulse rate. This monitor is suitable for animal, and could be applied in general ward, including, but not limited to, ICU, CCU or ambulance, and so forth.



CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 0

CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 1

CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 2

Specifications:

Display 3.5 inch color TFT
Resolution 320X480
Indicator Alarm light, Power light
Waveform SPO2 and wavevalue
Alarm Sensor off, Low power
Modes Visual and Audio
Application Small and Big animals/pets



CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 3
Oxygen Saturation (%SpO2)
*Measurement range:
SpO2:0-100% PR:0-300bpm
Perfusion index: 0.05%-20%
*Accuracy range:
SpO2 saturation: 70-100%
Pulse rate: 20-254bpm
Perfusion Index: 0.05%-20%
*Accuracy:
SpO2: ±2(70%-100%) Motion: ±3
Pulse rate: ±3bpm Motion: ±5bpm
Temperature
*Measurement range: 25 -45 degree
*Resolution:0.1 degree
*Accuracy:0.1 degree
Power Type:
Lithium ion batteryOperation time: 8 hours for normal operation
Temperature:
Operating: 0-45 degree
Storage/ Transportation: -20-65 degree
Humidity:
Operating: 15% to 90% noncondensing
Storage: 0% to 95% noncondensing
Altitude: Up to 5000 meters
Size: Dimension 146mmX67mmX30mm
Weight 250g
NIBP
*The wider NIBP measurement range
  Adult PED NEO
SYS 40-270mmHg 40-200mmHg 40-135mmHg
MEAN 20-230mmHg 20-165mmHg 20-105mmHg
DIA 10-210mmHg 10-150mmHg 10-95mmHg



Pulse rage range 40-240bpm
NIBP measurement accuracy ±3mmHg
Pulse rate measurement accuracy ≤2%(≥100bpm)or 2beats/min(<100BPM)



Independent software protection pressure
Adult:300mmHg PED:240mmHg Neo:150mmHg
Independent hardware protection pressure
Adult:320-330mmHg PED:265-275mmHg NEO:160-165mmHg



CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 2

CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 5

More Options:
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 6CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 7

Applications:
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 8


PC100 Series products:
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 9

Packing:
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 10

Union Medical Product Line:
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 11

Factory:
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 12

Company Profile:
We, Wuhan Union Medical Technology CO., Ltd, is a R&D company in patient monitoring solutions, which started in 2009 with leading engineers in China, and established in 2013. Union Medical is committed to the techniques and products of monitoring, diagnosing ,supporting and treating the biological information; serving the society; improving human health.

Union Medical focused on the development of patient monitoring solutions with engineers who have experience in this area for more than 15 years. Our main solutions are about the non-invasive and invasive solutions for patients vital sign parameters, technologies as: algorithm for ECG diagnosis, pulse oxygen monitoring, respiration gas monitor, respiratory monitoring, electronic sphygmomanometer etc. Vital sign parameter modules: ECG module, SPO2 Module, NIBP Module, IBP Module, Six-parameter Module, Multigas Module etc.

We also produce our own final monitoring equipments, like ECG machines, patient monitors, vital sign monitors, pulse oximeters, ETCO2 monitors/Capnometer/Capnograph, Anesthesia Multigas monitors etc.

CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 14
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 15
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 16
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 18
CE ISO 320X480 Veterinary Medical Equipment Veterinary Multiparameter Monitor 19
